Free Testosterone Reference Ranges:
Why the Gold Standard Measurement Changes Everything for Men on TRT
Curated By Nelson Vergel | ExcelMale.com | Updated March 2026
Key Takeaways
•Free testosterone (FT) is the only fraction that can enter cells and activate androgen receptors. Total testosterone alone often misleads.
•The gold standard for measuring FT is equilibrium dialysis combined with LC-MS/MS (ED LC-MS/MS). Most labs use a calculated formula that can overestimate true FT by ~20%.
•FT declines at roughly 4.5 pmol/L per year with age. SHBG rises with age, which accelerates the drop in free hormone even when total testosterone looks normal.
•Obesity suppresses FT independently: a BMI of 35 kg/m2 corresponds to a 22% decrease in measured FT compared to a lean reference BMI of 22 kg/m2.
•Age-specific reference ranges matter. Using a young-man standard on men over 80 would classify 76% of them as deficient.
•Men on TRT should ideally have FT confirmed by equilibrium dialysis when SHBG is abnormal, BMI is elevated, or symptoms persist despite normal total testosterone.
Introduction: Your Lab Result Might Be Lying to You
You just got your testosterone results back. The number looks decent. Your doctor says you’re fine. But you still feel tired, your libido has dropped, and your motivation is nowhere near where it used to be. Sound familiar?
If this situation resonates with you, there’s a good chance the problem isn’t with your testosterone production. It’s with what your lab test is actually measuring. For decades, men and their physicians have relied almost exclusively on total testosterone as the benchmark for hormone health. The research says that approach is often inadequate.
A landmark study published in the journal Andrology (Jasuja et al., 2023) and a parallel European study using data from over 1,200 men established the most robust age-stratified reference ranges ever published for directly measured free testosterone, using the gold standard equilibrium dialysis method. Their findings aren’t just academic. For men managing testosterone replacement therapy, struggling with symptoms despite ‘normal’ labs, or trying to understand how weight and age affect their hormones, this data is genuinely useful.
This guide walks through what free testosterone actually is, why the measurement method matters more than most men realize, and how to use the new reference ranges to have a more informed conversation with your doctor.
What Is Free Testosterone and Why Does It Matter?
When your lab reports ‘total testosterone,’ it’s counting everything: testosterone bound tightly to sex hormone-binding globulin (SHBG), testosterone loosely attached to albumin, and a small fraction floating free in your blood. Only that last fraction can cross cell membranes and actually do something.
This is the Free Hormone Hypothesis in a nutshell. Roughly 98 to 99% of your testosterone is bound to proteins and biologically inactive. The remaining 1 to 2% is unbound, free testosterone (FT). That’s the fraction that enters your cells, activates androgen receptors, and drives the effects you care about: muscle synthesis, libido, energy, cognition, and bone density.
Why Total Testosterone Misleads
The problem is that SHBG levels vary widely between men, and they shift throughout your life. SHBG rises as you age, rises with liver disease, and rises with hyperthyroidism. It drops with obesity, insulin resistance, and hypothyroidism.
When SHBG is high, testosterone gets bound up and locked away. Your total testosterone reading stays impressive while your tissues are actually starved for the active hormone. Conversely, when SHBG is low (as it often is in obese or insulin-resistant men), total testosterone looks low while free testosterone remains normal. A doctor who only looks at total testosterone will misread both situations.
The European Academy of Andrology and the Endocrine Society both recommend measuring or calculating free testosterone whenever SHBG levels are likely to be abnormal, including in men who are obese, older, diabetic, using certain medications, or have liver conditions.
Bioavailable Testosterone: A Related Concept
Some clinicians also reference ‘bioavailable testosterone,’ which adds albumin-bound testosterone to the free fraction. Since the albumin bond is loose and reversible, that fraction is considered readily available to tissues as well. Free testosterone and bioavailable testosterone often move together, but free testosterone is generally the better studied and more standardized measurement.

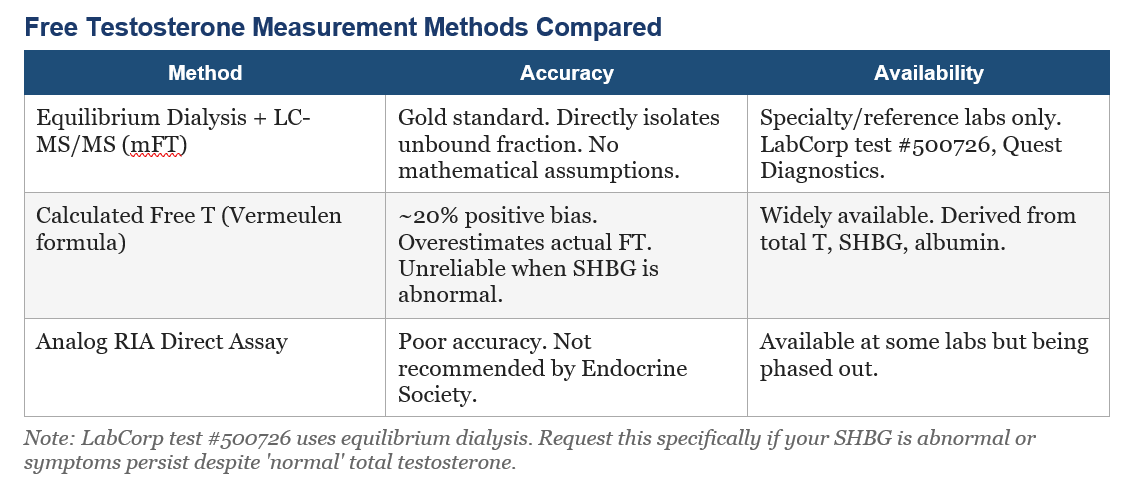

The Measurement Problem: Not All Free T Tests Are Equal
Here’s something that should concern every man who has ever had his free testosterone measured: most labs don’t actually measure it. They calculate it.
Calculated Free Testosterone: The Convenient Shortcut
The most common approach, used by labs like Quest Diagnostics in their standard panels, is to estimate free testosterone using a mathematical formula (typically the Vermeulen formula) based on your total testosterone, SHBG, and albumin levels. This ‘calculated free testosterone’ (cFT) is cheaper and faster than direct measurement.
But research comparing calculated values to actual measured values has found a consistent problem: the Vermeulen formula tends to overestimate free testosterone by about 20%. That’s not a minor rounding error. A man whose true free testosterone is 80 pg/mL might get a calculated result of 96 pg/mL, which could easily push him from ‘deficient’ into a lab’s ‘normal’ range. If his doctor stops there, the diagnosis gets missed.
The Gold Standard: Equilibrium Dialysis with LC-MS/MS
The reference method is equilibrium dialysis followed by liquid chromatography-tandem mass spectrometry (ED LC-MS/MS). In this technique, serum is dialyzed across a membrane for 16 to 24 hours at body temperature, physically separating the unbound hormone from everything that’s protein-bound. The dialysate is then quantified using mass spectrometry, which is the same high-precision method now recommended for total testosterone.
The result is directly measured free testosterone (mFT), not an estimate. Every assumption baked into the Vermeulen formula gets bypassed. The CDC’s hormone standardization program has been developing a harmonized version of this method precisely because the research community has recognized that calculated values aren’t reliable enough for clinical decisions.
If you’re on TRT and want the most accurate picture of your androgen status, ask for free testosterone by equilibrium dialysis. LabCorp offers it as test #500726. Quest Diagnostics also provides an equilibrium dialysis option. It costs more and takes longer than calculated free testosterone, but for men with abnormal SHBG or persistent symptoms, it can make the difference between a correct and incorrect diagnosis.
Note: LabCorp test #500726 uses equilibrium dialysis. Request this specifically if your SHBG is abnormal or symptoms persist despite ‘normal’ total testosterone. Quest Diagnostics test number is #37073 — Free Testosterone (Dialysis) + Total, MS + SHBG

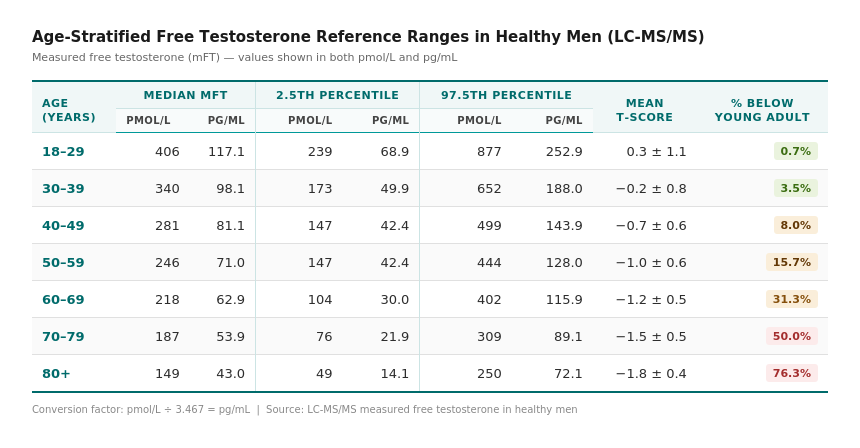

The New Reference Ranges: What ‘Normal’ Actually Looks Like
One reason the new research matters so much is that there were no widely accepted reference ranges for directly measured free testosterone. Labs were setting their own numbers, often derived from small cohorts or from calculated rather than measured values. This created a situation where the same blood sample could be called ‘normal’ at one lab and ‘low’ at another.
The Walravens et al. study (published in Clinical Endocrinology, 2024) analyzed data from 1,202 community-dwelling men aged 18 to 86 using ED LC-MS/MS with NIST-certified calibrators. Age-stratified ranges were established for healthy, non-obese men (BMI below 30 kg/m2) following Clinical & Laboratory Standards Institute guidelines.
The Jasuja et al. study (Andrology, 2023) from Harvard’s Brigham and Women’s Hospital validated similar findings in a separate cohort, reporting a normative range of 66 to 309 pg/mL (229 to 1,072 pmol/L) across all age groups, and 120 to 368 pg/mL (415 to 1,274 pmol/L) specifically for men aged 19 to 39.
Source: Walravens et al. (2024), based on ED LC-MS/MS measurement in 1,194 Caucasian men. To convert pmol/L to pg/mL, divide by 3.467.
What These Numbers Mean in Practice
A 35-year-old man with a free testosterone of 160 pmol/L sits at the low end of normal for his age group (range: 173 to 652 pmol/L). His doctor might say his result is within range and move on. But if he’s symptomatic, that context matters. He’s not at the bottom of the population, but he’s not at the median either.
A 65-year-old man with a free testosterone of 110 pmol/L is actually within the normal range for men aged 60 to 69 (104 to 402 pmol/L), even though the same value would be considered borderline low for a 35-year-old. This is the case for using age-stratified ranges rather than a one-size-fits-all cutoff.
How Age Drives Free Testosterone Down
The decline in free testosterone with age isn’t subtle. In the Walravens data, mFT drops by an average of 4.5 pmol/L per year. By the time a man reaches his 70s, his median free testosterone is roughly half what it was in his 20s.
Two processes drive this:
• Rising SHBG. SHBG increases by about 0.65 nmol/L per year. As SHBG climbs, it binds more testosterone, pulling it out of the free fraction. This is why free testosterone falls faster than total testosterone over time. A 2025 study in PMC confirmed that aging is consistently followed by higher SHBG and lower calculated free testosterone even in men without obesity.
• Testicular functional decline. As free testosterone falls, luteinizing hormone (LH) rises, meaning the pituitary is signaling harder for more production. The testes simply can’t keep up. This pattern suggests primary testicular impairment, not just a benign lifestyle change.
The Age-Reference Paradox
The data raise a real clinical dilemma. If you apply a young-man reference range to older men, a huge portion of the elderly population falls below the cutoff. In the Walravens study, 76.3% of men over 80 had mFT values below the lower limit of the 18-to-39 reference range.
Does that mean 76% of octogenarians are hypogonadal? Probably not. It likely reflects a combination of natural aging and a mismatch in how we’re setting thresholds. The researchers suggest using age-stratified Z-scores (comparing a man to his own age group) rather than T-scores (comparing him to a young adult), at least when the goal is diagnosing true pathological deficiency versus normal aging.
For men on TRT, this distinction matters. If you’re 70 and your free testosterone on therapy is 250 pmol/L, you’re well above the median for your age group and within normal range. That’s a different conversation than a 35-year-old with the same level.
How Body Weight Suppresses Free Testosterone
If you’ve been told your low testosterone is ‘probably just because of your weight,’ there’s some truth to that, but the picture is more complicated than it sounds.

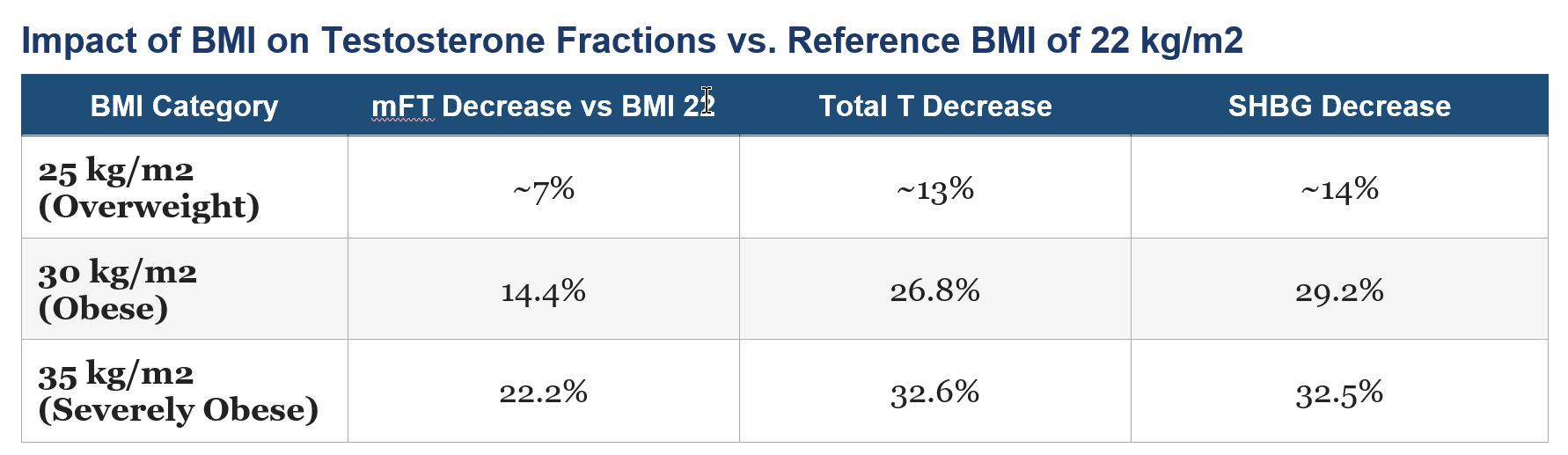

BMI has a direct, quantifiable inverse relationship with free testosterone. Using restricted cubic spline regression in the Walravens study:
Source: Walravens et al. (2024). Decreases are relative to a reference BMI of 22 kg/m2.
Why Free Testosterone Holds Up Better Than Total T in Obesity
Notice that total testosterone drops more sharply with rising BMI than free testosterone does. The reason: obesity lowers SHBG, which paradoxically frees up more testosterone. So even as total testosterone falls, the free fraction doesn’t drop as dramatically because there’s less SHBG binding it up.
This is exactly why free testosterone is a better measure of actual androgen status in heavier men. A man with a BMI of 35 and a total testosterone of 280 ng/dL might have doctors scrambling to start TRT. But his free testosterone could be perfectly adequate because of suppressed SHBG. Measuring free testosterone directly avoids this misread.
The flip side is also true. Some obese men have genuinely low free testosterone after SHBG effects are accounted for, particularly those with severe obesity (BMI over 35), type 2 diabetes, or obstructive sleep apnea. In those cases, free testosterone measurement is even more clinically meaningful than total testosterone.
Weight Loss and Hormonal Recovery
A 2024 meta-analysis in Andrology examined weight loss outcomes across 46 studies covering 1,774 men. Weight loss increased both total and free testosterone, but the magnitude depended on how much weight was lost.
Minor weight loss (under 15%) raised total testosterone modestly without significantly moving free testosterone. Substantial weight loss over 15%, particularly through bariatric surgery, raised free testosterone by an average of 58 pmol/L via genuine reactivation of the hypothalamic-pituitary-testicular axis (evidenced by a significant rise in LH).
The practical implication: if you’re overweight and symptomatic, losing weight is the first intervention that should be tried before jumping to TRT. But if you’ve already lost significant weight and still feel off, measuring free testosterone directly is the next logical step.
Practical Guidance for Men on TRT
If you’re already on testosterone replacement therapy, free testosterone measurement serves a different purpose than it does in the diagnostic phase. Here’s how to use it effectively.
When to Request Free Testosterone by Equilibrium Dialysis
• Your SHBG is above 50 nmol/L or below 20 nmol/L.
• Your BMI is above 30, making calculated values especially unreliable.
• You have symptoms of low testosterone despite total testosterone in a ‘normal’ range.
• You have diabetes, liver disease, or are taking medications that affect SHBG (like thyroid hormones, anticonvulsants, or glucocorticoids).
• You’ve recently changed your TRT protocol and want an accurate baseline.
Target Ranges on TRT
There’s no universally agreed-upon target for free testosterone on therapy. The Endocrine Society recommends targeting mid-normal ranges for young healthy men, which corresponds roughly to 150-400 pg/mL (520-1,388 pmol/L) by equilibrium dialysis. However, most practicing clinicians who follow ExcelMale discussions recognize that symptom resolution matters as much as hitting a specific number.
The injection frequency data from ExcelMale discussions is particularly relevant here. Men who inject testosterone more frequently (daily or every other day) tend to have more stable SHBG levels, which affects free testosterone more consistently than infrequent larger injections. The peak-to-trough swings with weekly injections can mean free testosterone varies substantially across the week.
The Conversion Factor You Need
Labs in the US typically report free testosterone in pg/mL, while European studies use pmol/L. To convert pmol/L to pg/mL, divide by 3.467. To go the other direction, multiply pg/mL by 3.467. So if a study says the normal range for men aged 40 to 49 is 147 to 499 pmol/L, that’s roughly 42 to 144 pg/mL.
Timing Your Blood Draw
Free testosterone follows the same diurnal rhythm as total testosterone, peaking in the morning and declining through the afternoon. Draw blood between 7:00 and 10:00 AM for the most consistent and interpretable result. If you’re on daily or every-other-day subcutaneous injections, draw before your next scheduled dose.
The Standardization Problem: Why Your Result Depends on Your Lab
Here’s an uncomfortable reality: even equilibrium dialysis values can vary significantly between laboratories. Some published studies report mFT values twice as high as others in comparable populations. The problem is that there’s currently no universal reference standard for free testosterone measurement, unlike total testosterone, which has been standardized through the CDC’s hormone standardization program.
Differences in buffer composition, incubation time, temperature control, and calibration materials all affect the result. When labs report equilibrium dialysis values without disclosing their specific methodology, you can’t always compare one lab’s result to another’s reference range.
This is why the researchers behind both the Jasuja and Walravens studies called for an IFCC-style global harmonization effort for free testosterone measurement, similar to what was done for thyroid tests. Until that happens, the most practical advice is to stay with the same lab when tracking changes over time, and to ask whether the reference ranges printed on your lab report were derived from equilibrium dialysis or from calculated values.
Limitations and What the Research Doesn’t Tell Us
In the interest of giving you a complete picture, here are the honest limitations of this data:
• The reference ranges are from European cohorts. Both major studies used Caucasian men from Belgium and Europe. Reference ranges in US populations (which have higher average BMIs and greater ethnic diversity) may differ, and the studies’ authors acknowledged this directly.
• No symptom thresholds are established. The studies tell us what free testosterone levels look like in healthy men. They don’t establish at what level symptoms reliably appear. That relationship is complex and individual.
• The role of free testosterone vs. total testosterone in TRT monitoring is still debated. The AUA guideline notes that while some authorities advocate for free testosterone as the primary measure, total testosterone remains the standard initial test, with free testosterone reserved for specific clinical situations.
• The ranges don’t apply to men on TRT. These reference intervals are derived from untreated, healthy men. They can serve as a target for therapy, but TRT-specific monitoring guidelines remain less clearly defined.
Related ExcelMale Forum Discussions
The ExcelMale community has been discussing free testosterone, SHBG, and measurement nuances for years. These threads offer practical, real-world perspectives that complement the clinical research:
• Sex Hormone Binding Globulin (SHBG): Is It Good or Bad? -- A deep-dive community discussion on how SHBG affects free testosterone and why not all SHBG changes are harmful.
• What Is the Purpose of Sex Hormone Binding Globulin? -- Members discuss the physiological roles of SHBG beyond just binding testosterone.
• How to Lower Your Sex Hormone Binding Globulin -- Practical strategies members have used to reduce high SHBG levels and improve free testosterone.
• How to Lower SHBG and Increase Free Testosterone -- Protocol-level discussion on dietary, lifestyle, and medication interventions for optimizing the free fraction.
• Injection Frequency Effect on SHBG -- Community members share data on how daily vs. weekly injection protocols affect SHBG and free testosterone levels.
Key References
1. Jasuja R, Pencina KM, Spencer DJ, et al. Reference intervals for free testosterone in adult men measured using a standardized equilibrium dialysis procedure. Andrology. 2023;11(1):125-133. https://doi.org/10.1111/andr.13310
2. Walravens J, et al. Age-stratified reference ranges for directly measured serum free testosterone in healthy men. Presented at European Congress of Endocrinology (ECE 2024) and Belgian Endocrine Society (BES 2024). https://www.endocrine-abstracts.org/ea/0099/ea0099p195
3. Corona G, et al. European Academy of Andrology (EAA) guidelines on investigation, treatment and monitoring of functional hypogonadism in males. Andrology. 2020;8(5):970-987. https://doi.org/10.1111/andr.12770
4. Grossmann M, et al. Approach to the Patient: Low Testosterone Concentrations in Men With Obesity. Journal of Clinical Endocrinology & Metabolism. 2023. https://doi.org/10.1210/clinem/dgad421
5. Ken-Dror G, et al. Meta-analysis and construction of simple-to-use nomograms for approximating testosterone levels gained from weight loss in obese men. Andrology. 2024;12(2):297-315. https://doi.org/10.1111/andr.13484
6. Anawalt BD, et al. The association of obesity with sex hormone-binding globulin is stronger than the association with ageing. Clinical Endocrinology. 2016;84(3):321-327. https://pmc.ncbi.nlm.nih.gov/articles/PMC4782930/
7. Anawalt BD, et al. Performance of Total Testosterone Measurement to Predict Free Testosterone for the Biochemical Evaluation of Male Hypogonadism. Journal of Urology. 2012;187(4):1369-1373. https://pmc.ncbi.nlm.nih.gov/articles/PMC10368284/
8. American Urological Association. Testosterone Deficiency Guideline. AUA. 2022 (updated). https://www.auanet.org/guidelines-and-quality/guidelines/testosterone-deficiency-guideline
9. Fiers T, et al. Reassessing Free-Testosterone Calculation by Liquid Chromatography-Tandem Mass Spectrometry Direct Equilibrium Dialysis. J Clin Endocrinol Metab. 2018;103(6):2299-2306.
10. Measurement of Free Testosterone in Serum Using Equilibrium Dialysis-Coupled With ID-UHPLC-MS/MS. PMC/CDC Hormone Standardization Program. 2021. https://pmc.ncbi.nlm.nih.gov/articles/PMC8090003/
